A luxury integrated-resort casino in Incheon, South Korea, floored throughout with waterjet-cut marble and brass — black-and-white checkerboards, 3D-cube fields, radial wheel and circular medallions, Greek-key bordered panels and a 180.14 m2 circular centrepiece. Sun Young Stone engineered the cutting drawings, waterjet-cut every piece, dry-laid and verified each pattern in the factory, then shipped numbered, installation-ready stone.
- Location
- Incheon, South Korea
- Project Type
- Casino / Hospitality
- Materials
- Bianco Carrara White Marble, Nero Marquina Black Marble, Brown Emperador Marble, Volakas White Marble, Brass Inlay
- Finishes
- Polished
Casino-Grade Waterjet Marble
From CAD Cutting Drawing to Dry-Laid Casino Floor
The Incheon Casino floors are built from thousands of individually waterjet-cut marble and brass pieces — black, white and brown stone assembled into checkerboards, 3D cubes, radial wheels and circular medallions. For every pattern we engineer a numbered cutting drawing, waterjet each piece, then dry-lay the complete design flat in our factory and check it against the drawing before a single tile ships. This is the same documented waterjet workflow we have used on casino and integrated-resort projects in South Korea, Vietnam and Macau.
Pattern Engineering — Drawing Matched to Cut Stone
Numbered waterjet cutting drawings, dry-laid for verification
Each floor pattern starts as a fully dimensioned cutting drawing in which every piece is numbered and colour-coded by material. We waterjet-cut the marble and brass strictly to that drawing, then dry-lay the finished pattern flat on the workshop floor and compare it one-to-one with the CAD layout. Only after the dry-laid pattern is verified — joints, alignment, colour match — is it numbered, crated and released for shipment. The pairs below show the engineering drawing beside the real assembled stone.

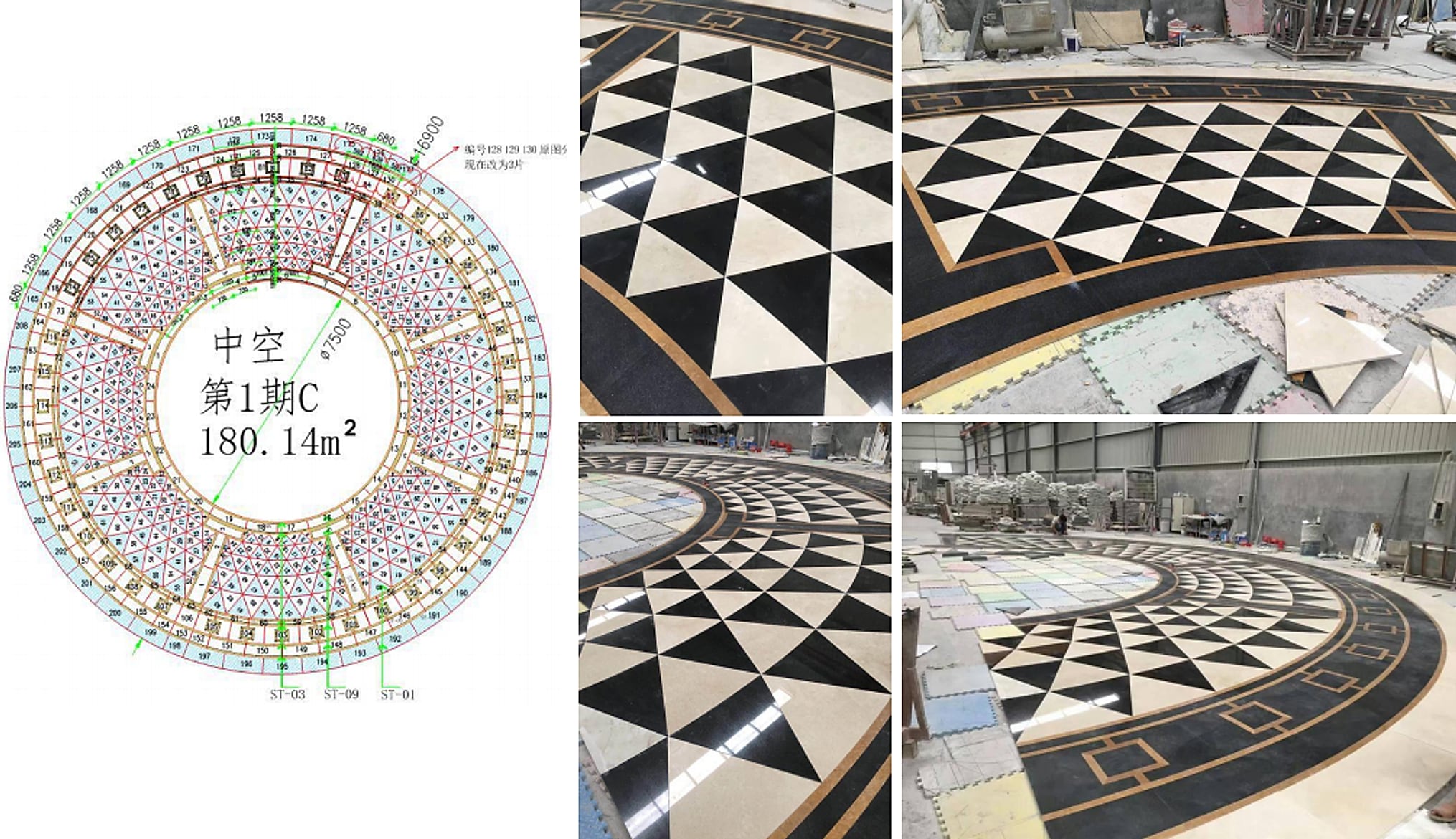

Circular Checkerboard — 180.14 m²
A 180.14 m² hollow circular field of black-and-white triangular marble. The numbered radial cutting drawing (left) is matched against the dry-laid stone (right) so every triangle and the brass ring border line up perfectly before shipment.

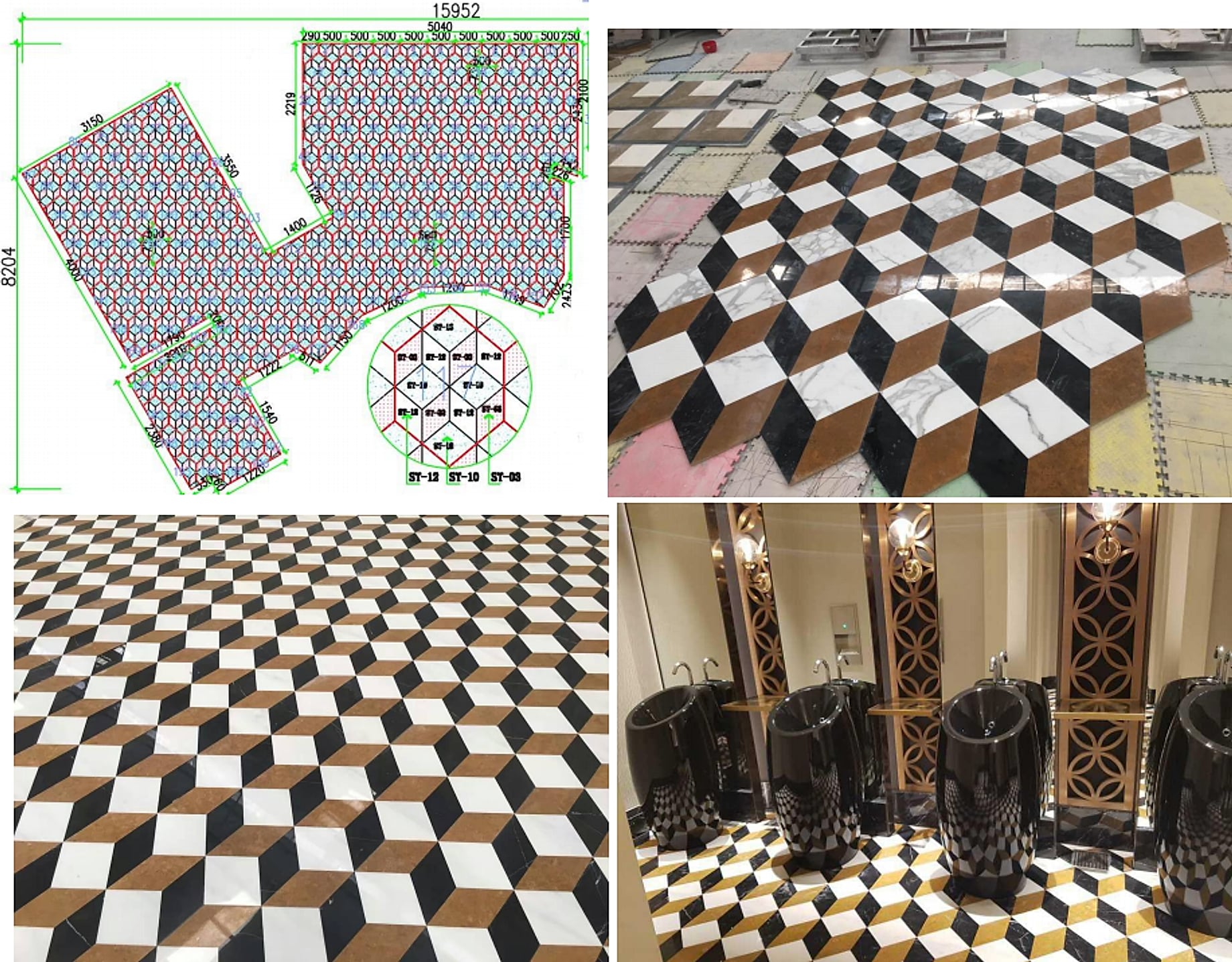

3D Cube Illusion
A three-dimensional cube optical pattern in white, black and brown marble. The tessellation drawing is dry-laid and verified, then installed in the casino — shown here in a finished restroom with matching black stone fixtures.

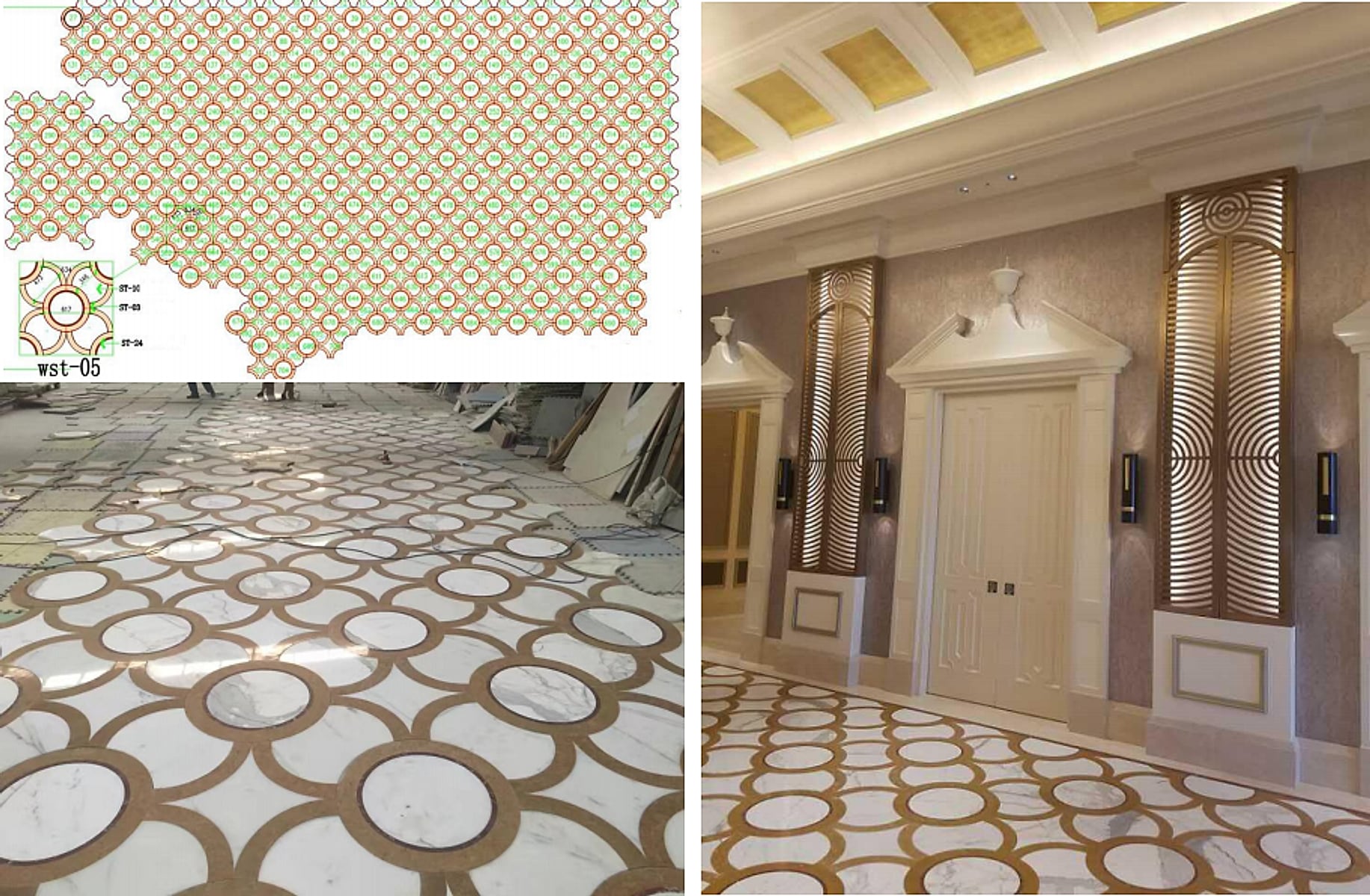

Interlocking Rings Field
An interlocking-ring field of white marble with brass rings (drawing ref. WST-05). The repeating circle geometry is waterjet-cut, dry-laid and confirmed before it becomes the lobby and gaming-floor paving.

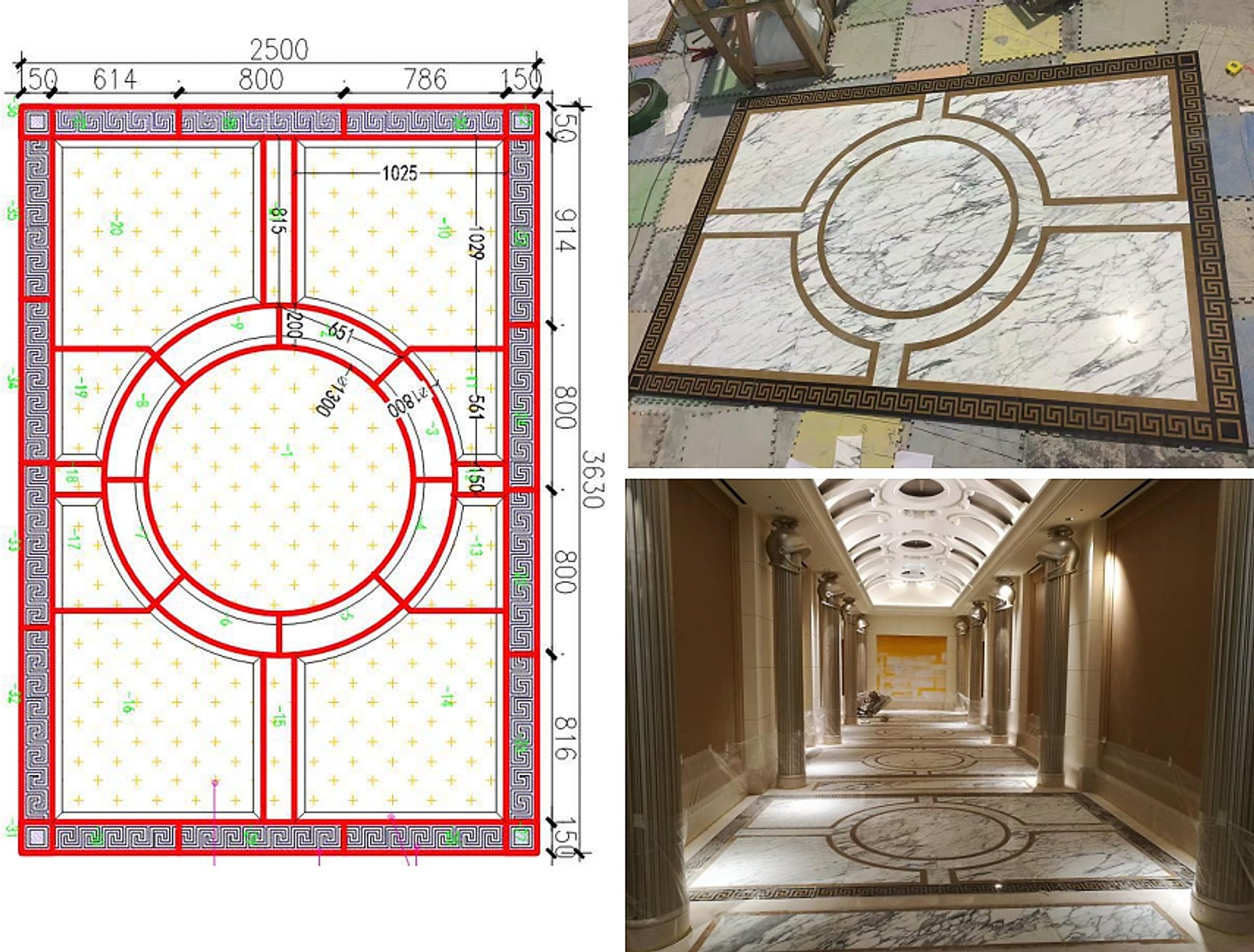

Greek-Key Bordered Panel
A white-marble panel framed by a brass-and-black Greek-key border with a central ring. The 2500 × 3630 mm setting-out drawing is matched to the cut stone, then installed as a feature corridor floor.

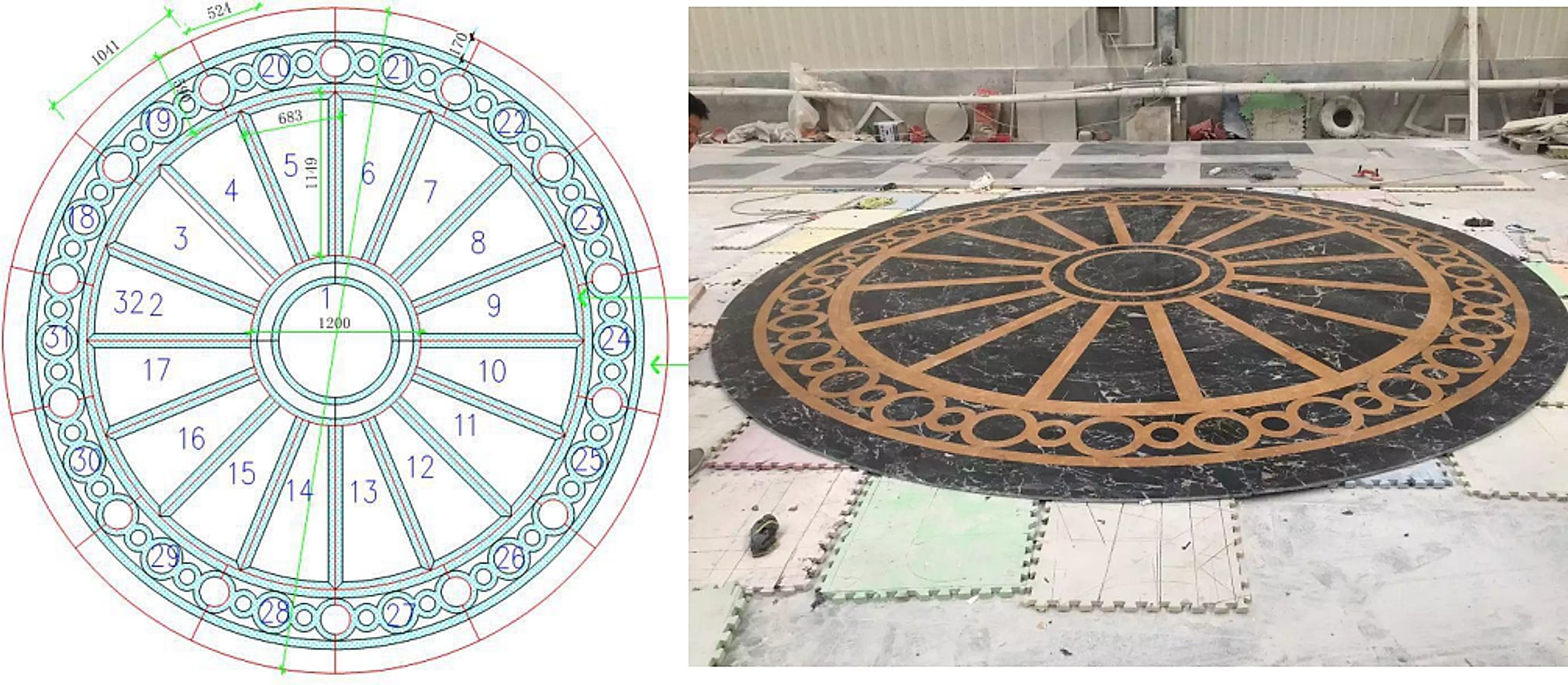

Radial Wheel Medallion
A spoked wheel medallion in black marble with brass spokes and a ringed border. The segmented drawing numbers every spoke and arc so the round medallion assembles true on the casino floor.
Floral Ring Medallions
A run of black, white and brass floral-ring medallions. Each is waterjet-cut and dry-laid in sequence, then set into the polished cream-marble corridor as a repeating feature.

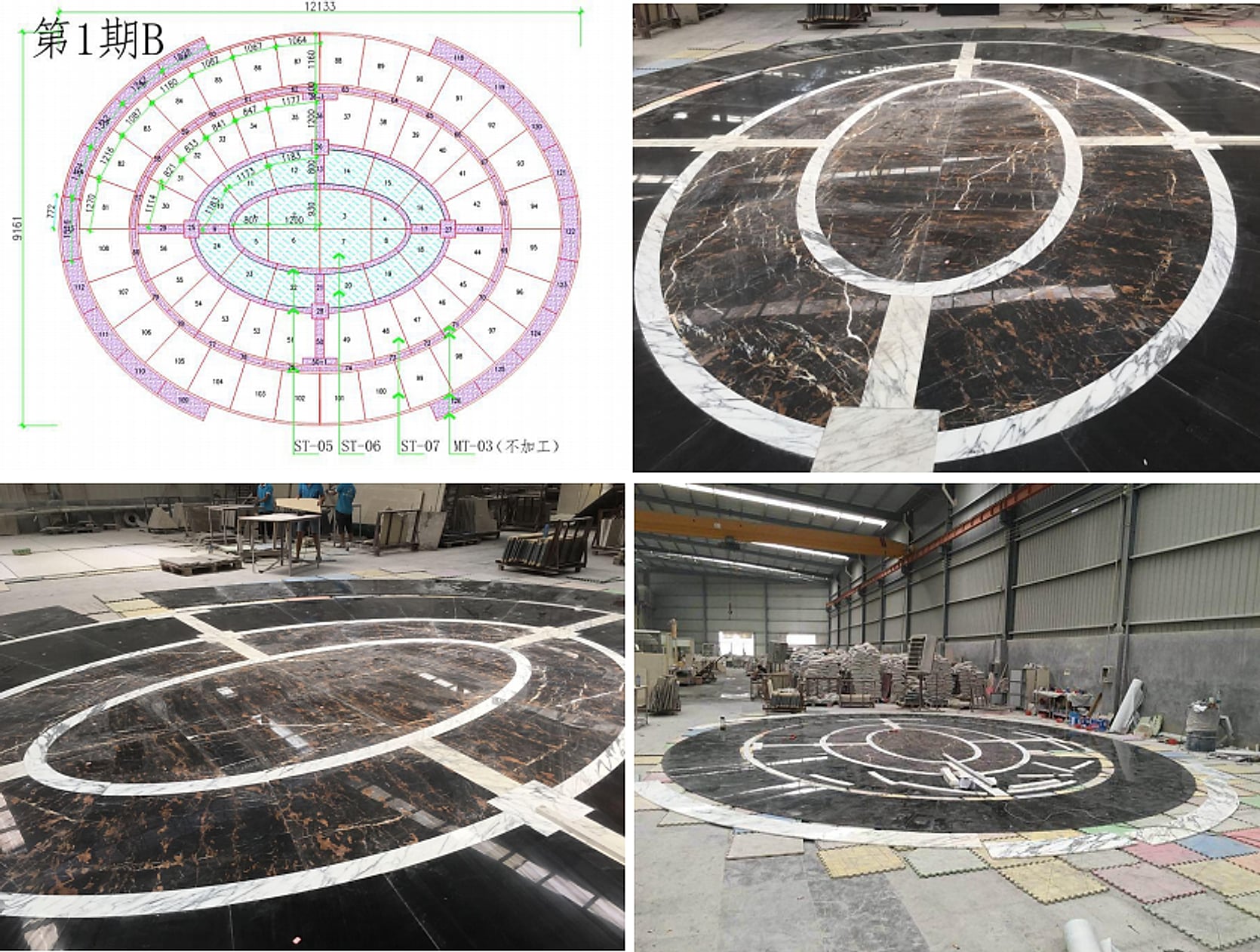

Grand Oval Medallion
A large elliptical medallion (drawing ref. Phase 1-B) in dark and white marble with a banded ring. The full medallion is dry-laid flat in the factory — at workshop scale you can see the complete pattern resolve before crating.
Installed in the Casino
The finished waterjet floors in use
On site in Incheon, the numbered waterjet pieces assemble into the finished gaming, lobby and circulation floors. Polished marble medallions, classical Greek-key borders and brass inlay tie together a luxury casino interior built to hospitality durability and slip-safety standards.

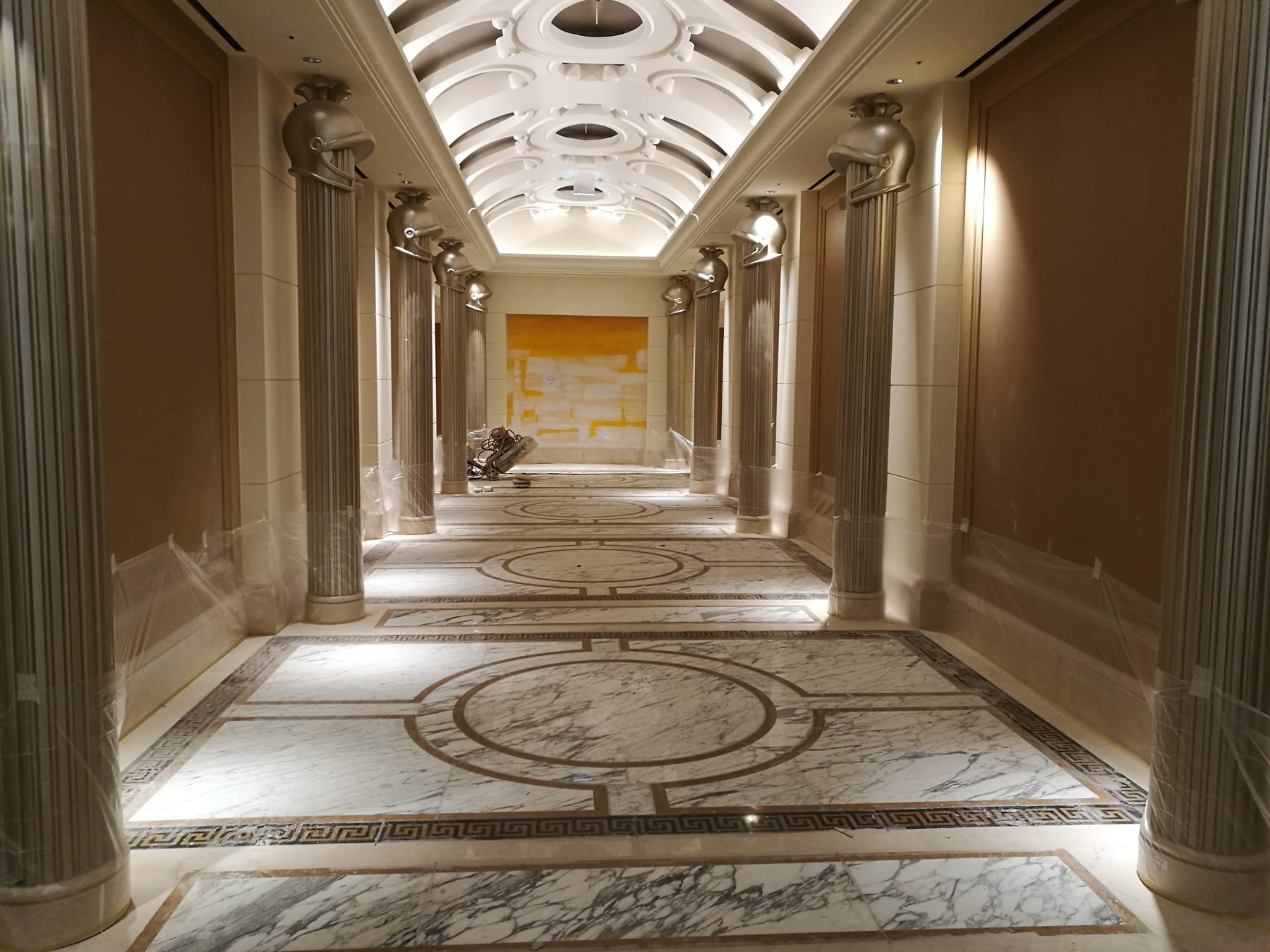

Colonnade Gallery
A grand colonnade gallery floored in white marble with brass-lined circular medallions and a Greek-key border — waterjet inlay running the full length between the columns.

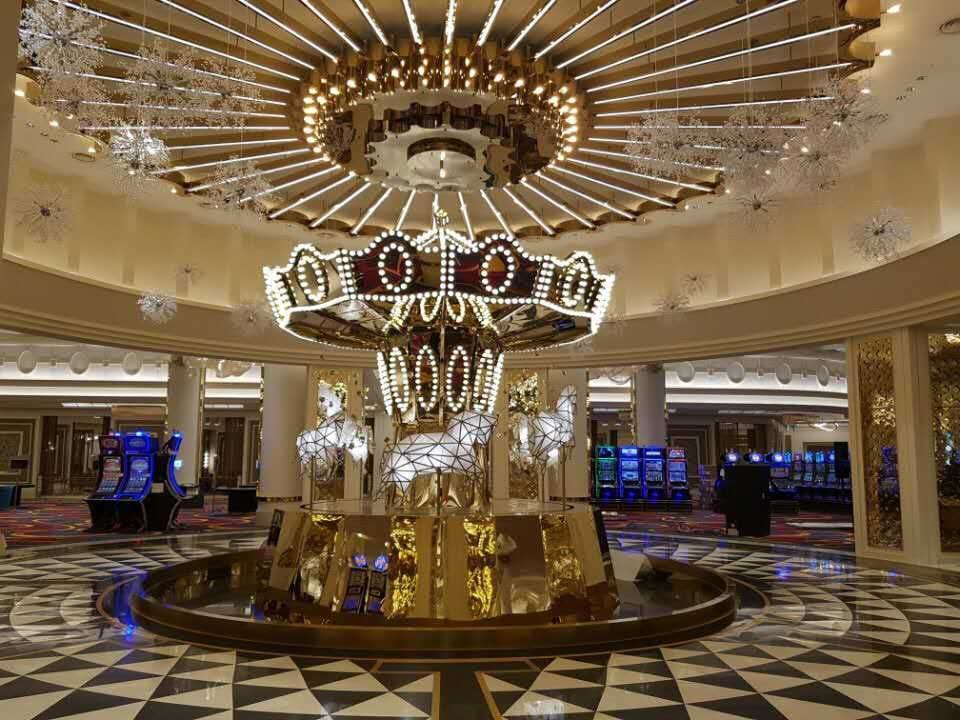

Gaming Atrium
The main gaming atrium under its feature chandelier, with the black-and-white marble waterjet floor radiating out beneath the slot floor.

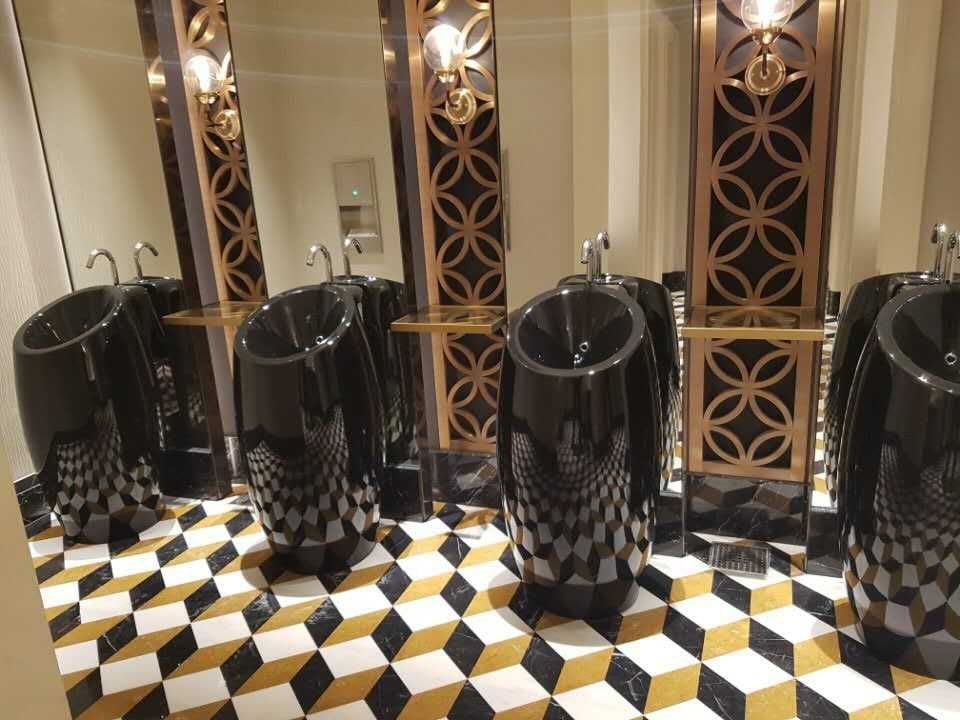

Feature Restroom
Even the restrooms carry the 3D-cube waterjet floor in black, white and brass, paired with black stone fixtures — proof the detailing runs throughout the project.
Planning a casino or waterjet marble floor?
Send us your floor drawings, pattern references or BOQ. We will engineer the cutting layout, waterjet the marble and brass, dry-lay and verify every medallion, and ship numbered, installation-ready stone — backed by our casino experience across Korea, Vietnam and Macau.
Request a Waterjet QuoteA casino floor built from thousands of waterjet pieces
Casino interiors demand floors that are both spectacular and hard-wearing. For this Incheon project the brief called for intricate marble inlay across the gaming floor, lobbies, colonnade galleries, corridors and even the restrooms — checkerboards, three-dimensional cube illusions, radial wheels, interlocking rings and large circular medallions. Every one of these patterns is assembled from thousands of individually waterjet-cut pieces of black, white and brown marble combined with brass strips.
Why casino clients choose Sun Young Stone for waterjet marble
We have supplied waterjet marble medallions and inlay flooring to casino and integrated-resort projects across South Korea, Vietnam and Macau, so we understand both the design ambition and the practical supply standards these projects demand: tight cutting tolerances, consistent colour batching across huge floor areas, slip-safe polished finishes, numbered packing for fast installation, and the documentation a main contractor needs. From engineered cutting drawing to dry-laid verification, every medallion is proven flat in our factory before it ships.
Drawing-to-stone proof on every pattern
The production dossier below pairs each engineered cutting drawing with the real dry-laid stone and, where available, the installed casino floor. It is the clearest evidence that these floors were genuinely produced in-house: the same numbered pieces you see on the drawing are the ones cut, laid and checked in our workshop. If you are planning a casino, hotel or other project with waterjet marble medallions or inlay, this is exactly how we would deliver yours.
Stone Applications in This Project
- Casino gaming-floor marble medallions
- Lobby & atrium feature paving
- Corridor waterjet inlay borders
- Restroom inlay flooring
Frequently Asked Questions
Can you produce waterjet marble medallions from our own casino floor drawings?
Yes. Send us your floor layouts, pattern references or BOQ and we engineer a numbered cutting drawing for each medallion and field, waterjet-cut the marble and brass, then dry-lay and verify the complete pattern before production is released.
Which marbles and metals do you use for casino waterjet floors?
Commonly Bianco Carrara and Volakas white marbles, Nero Marquina black marble and brown Emperador, combined with brass strips and inserts. We can match almost any natural stone or specified metal, and we colour-batch material across large floor areas for consistency.
Do you have experience with casino and integrated-resort projects?
Yes. We have supplied waterjet marble medallions and inlay flooring to casino projects in South Korea, Vietnam and Macau, and understand the durability, slip-safety, colour-consistency and packing requirements these projects demand.
How do you make sure intricate medallions install correctly on site?
Every pattern is dry-laid flat in our factory and checked one-to-one against the cutting drawing for joints, alignment and colour. Pieces are then numbered and crated by location so they return to their exact position on site, which keeps installation fast and accurate.
How is the marble packed and shipped?
Verified pieces are numbered, interleaved and crated in sequence with the layout drawing, then export-packed for sea freight. Numbered packing lets your installer lay each medallion straight from the crate in the right order.
